< 2024-06-11 2024-06-18 >Following on from yesterday's blog post: https://incoherency.co.uk/blog/stories/chatgpt-linux.html
It would not be too hard to replicate this functionality, but in a way that it works on my own servers instead of on ChatGPT's sandboxed environment.
It would be too slow and expensive to use as an everyday shell, but a fun project anyway, and maybe more useful in future.
There is prior art:
Example of what I have in mind for a "chatgpt shell script":
#!/bin/gptsh
list (ls -l) the files in ~/Documents and the backups in ~/backup
backup any new or modified Documents to a new tar.gz file in ~/backup
And you can imagine that it would note the modification timestamps of all your documents and make a new backup file with only those ones in. It can do this with either Python or directly with bash, you don't care, as long as it works.
Take the motors off and take the machine back out, and then:
Collars are done. 2 of them were already the right ones anyway, although they were loose. But now all 3 are the right ones and should be tight enough. For the X axis I really tightened the collar up against the bearings before tightening the grub screw, for the Y and Z axis I just finger-tightened it and then did up the grub screw. Hopefully Y and Z don't come back to bite me.
The bolts to hold the machine in the tub need to go through 50mm of baseplate, 25mm of tub, and accommodate a nut on the bottom. The hole is sized for M8. So let's try to get 4x M8 bolts 90mm or so long, and 8x (12x?) associated rubber washers.
I put some "Gorilla All-Conditions Sealant" (silicone) in the 4 unwanted holes:
Not a pretty job but hopefully it'll seal. The front ones will be covered by the baseplate so should be fine, but if the rear ones get disturbed they might start leaking. Contingency plan in that event is to pull the silicone plug out, and put a bolt through the hole with lots of silicone around it.
So next up is working out how to fit the spindle clamp. Probably about time I ordered a VFD as well. It would be good if I could put the VFD in the cabinet, not least because I'd be able to easily use the existing ammeter (although maybe 3 amps is not enough?). Meh, don't worry about it, just get a VFD. If I can't put it in the cabinet I'll just put it at the side, maybe with its own wall mounting. And if I can't use the 3A ammeter, I can either forget the ammeter or get a bigger one.
I don't want to have to hook up the VFD to the CNC control, I think I'd rather set the speed by hand. And I want to be able to set the speed by hand anyway, so I really want one with a rotary knob.

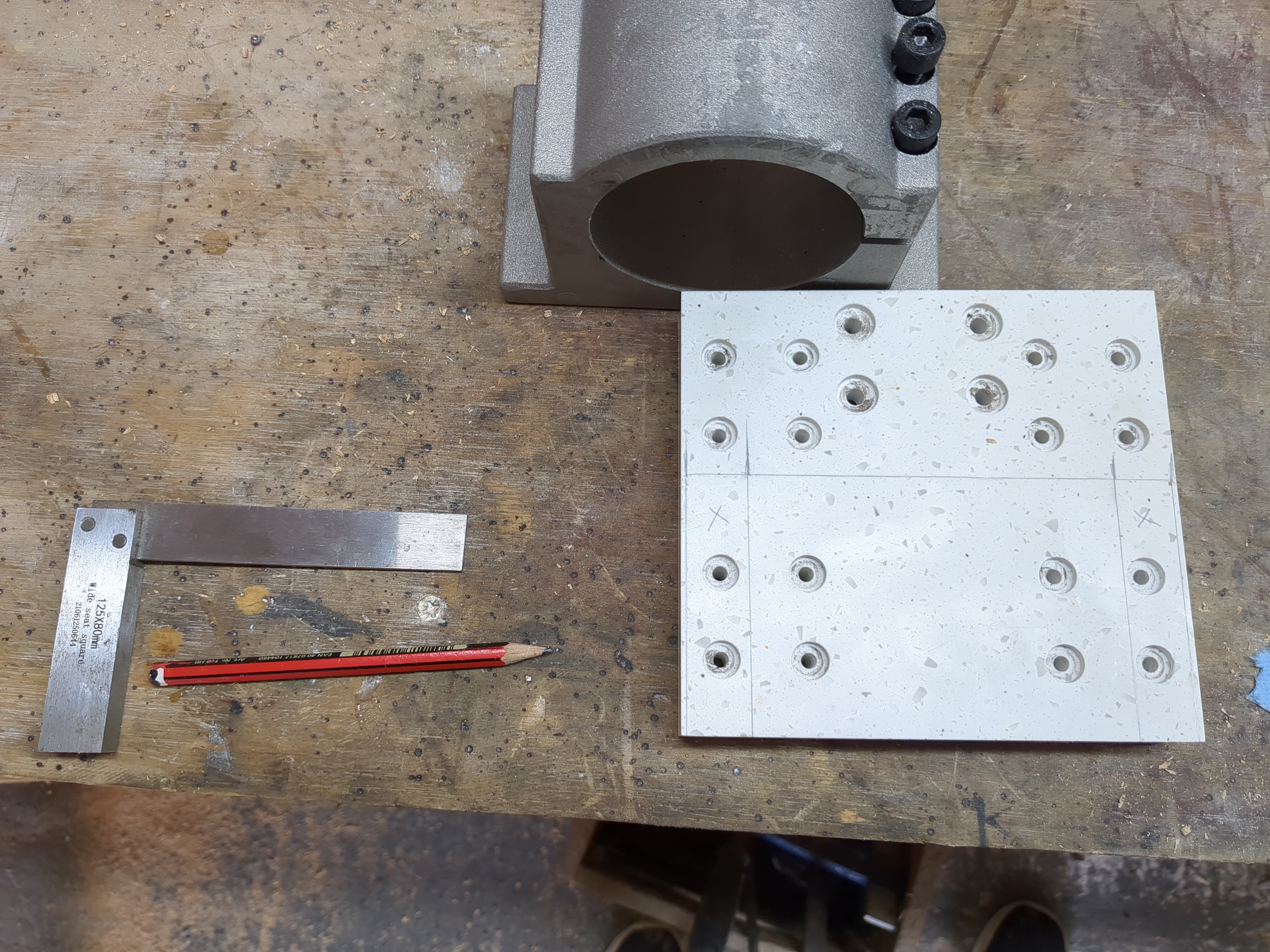

Here I've marked up the location of the spindle clamp flange thing, on the Z plate:
The "X" shows the position that I obviously want a bolt. Do I want the second one at the bottom? Which could be too close to the corner, or do I want it in between the carriage bolts? Which could be too close to the carriage bolts.
I think at the bottom. There are already holes close to the edges, the only thing different here is it's close to 2 edges. But let's risk it. If it does break I can replace this one part quite easily.
And I only have M4 and M6 threaded inserts, I think I'd really prefer M5 for this because of how close it is to the edge, but I'll just go with M6. Needs a 10mm hole.
Lol, the bottom holes are very close to the edge:
Oh well, onwards: matching holes in the spindle clamp, and then inserts glued into the Z plate.
Great success:
Bolts line up with the holes and go into the threaded inserts, and there is a bit of wiggle room for alignment. If there's not enough wiggle room I can drill the holes out larger. So I just need to glue the inserts in and then I'm done for now.
I've glued them in using the spindle clamp as a template (not that it was probably needed, the holes had very little wiggle room. Need to demould at 6pm.
Shopping list:
The longest M8 flanged bolts I could find were 80mm, not sure if that will be quite long enough, will find out.
VFD: I've ordered one of these: https://www.omc-stepperonline.com/ev50-series-vfd-2hp-1-5kw-7-0a-single-phase-220v-variable-frequency-drive-ev50s20015bx0
It is an "EV50" from StepperOnline (although I got it from their eBay shop). There were several different types available on eBay, just a roll of the dice on which one to buy. I went for this one because the switches on the front panel look higher-quality than the others, but I don't know if that says anything about what's inside.
Also ordered an aquarium pump, 5m of hose, and a bucket. For the hose I went for 6mm internal diameter PVC hose. Hopefully that is suitable. On the floor under the machine stand I have 30cm vertical height, so I got a bucket that will fit, it holds 10 litres.
I think I'll need an adapter to fit the hose to the pump, but that should be a quick lathe job, I'm not worried about that. I already have antifreeze. So I think this is all I need.
Then once it's all assembled in the machine, plan is:
